Carbonated beverage rising filling capping 3 in 1 machine
Features:
1. This DCGF Wash-filling-capping 3-in-1unit:
2. Beverage Machinery is used to produce Gas beverage (CSD)
3. The DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing,
4. it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
This machine works harmoniously with air-conveyor belt; it holds the bottles by the neck when transporting
This machine is used to fill carbonated drink into pet bottle and with screw caps capping function.
Integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
Technical parameter
| odel | DCGF 16-12-6 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-15 |
| Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
| Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
| Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
| Overall size | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400 |

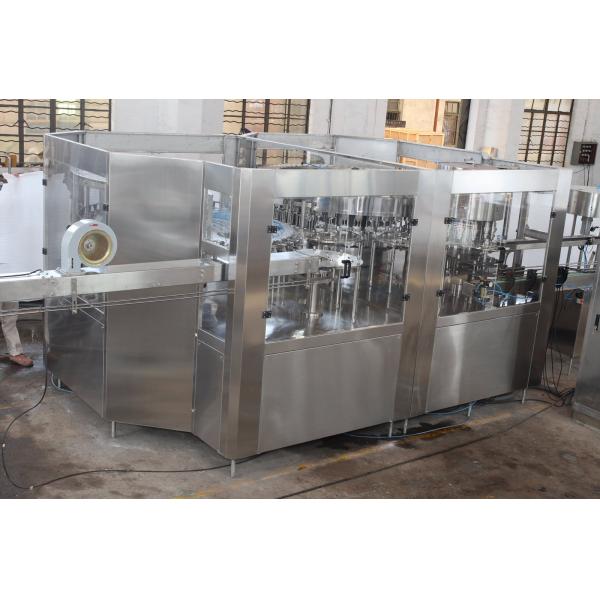

Machine pictures
inner look

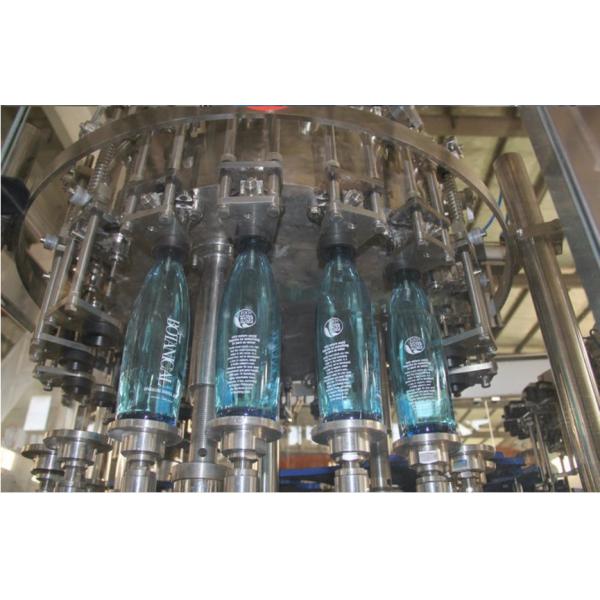

Rinser
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

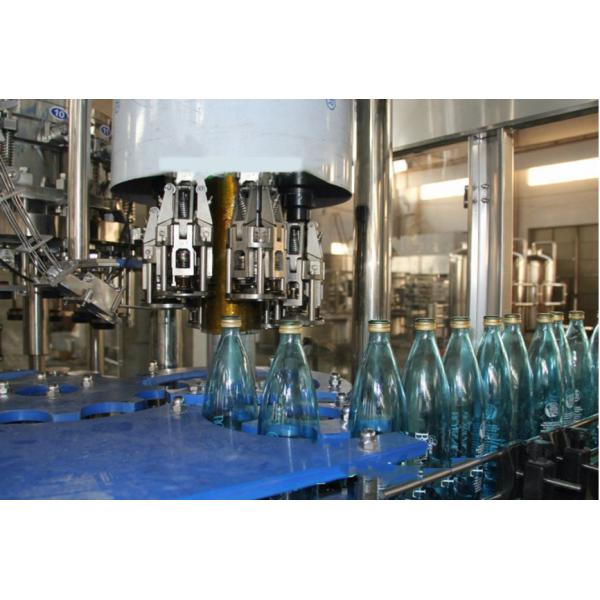

Capper
-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
production line
final products
