Introduction
Final product: beer, carbonated soft drink, soda drink, cola
This is glass bottle filling machine, which combines riner filler and capper
in one unit, can fill different size bottle, 200-2000ml only by changing some
changeoers.

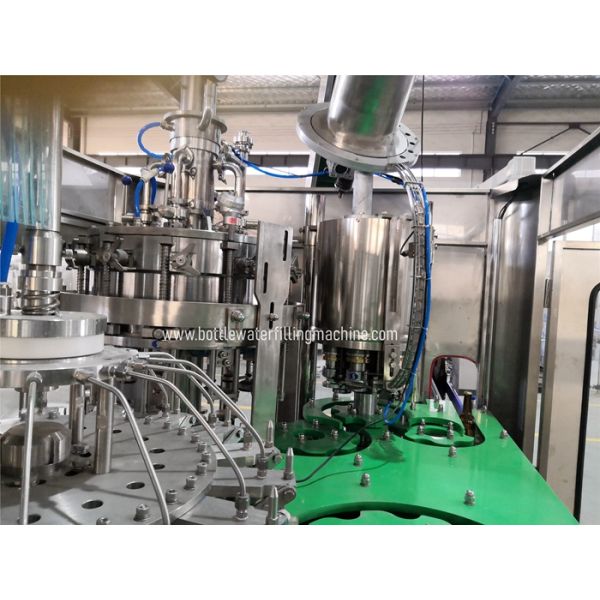

Machine show
16-12-6 Glass Bottle Fillers For Soft Drinks, Beer Bottling Equipment Full Turnkey Line
The 12 heads filling machine designed by HG Company adopts the counter pressure filling
technology which can perfectly realize the requirments of twice vacuum, Co2 injection.
The machine also adopts 3 in 1 compact design, easy to operate and maintain.
Parameter
| Item | Parameters | Item | Parameters |
| Washing heads | 16 | Vacuum pump | 0. 20m3/h |
| Filling heads | 12 | Power | main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW |
| Capping heads | 6 | Dimensions | Accoring to the machine |
| Capacity | 1000-3000BPH | N.W. | 2500kg |
| Bottle type | height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm | Working voltage AC | It can be customized by the customers'electrical conditions. |
| Air consumption | 0.15m3/min(0.4~0.6Mpa) | Control voltage DC | It can be customized by the customers'electrical conditions. |
| CO2consumption | 1.6kg/l000L | Frequency converter | SIEMEMS |
| Water consumption | 0. 8m3/h | PLC | SIEMEMS |
| Touch screen | PLC | Pneumatic element | SMC |
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer. Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on. Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
we can supply complete line plants, include
1. water treatment
2. beer/carbonated drink mixing sytem
3. filling machine
4. labeling machine
5. packing machine
you are welcome to contact for more information...
