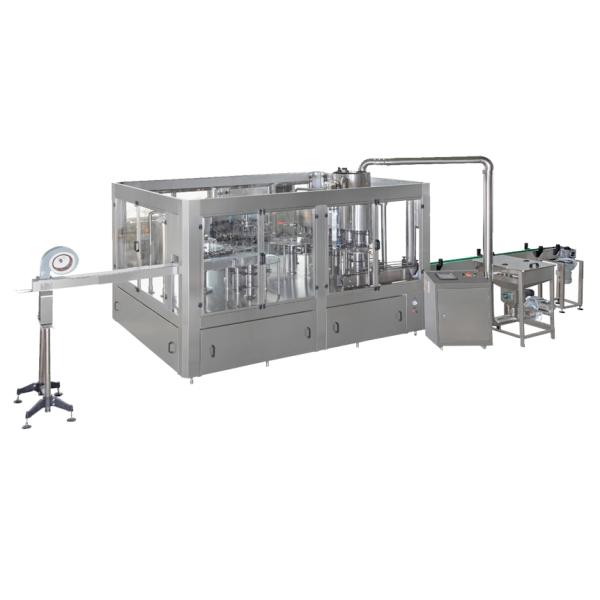

Stainless steel mineral bottle Water Filling Machine CGF series 500ml 4 in 1
Description:
This drinking water filling machine is mainly used in washing, filling and capping the bottles with mineral water and pure water.
The 4 in 1 monoblock includes four parts: rinsing-rinsing-filling-capping.
Our drinking water filling machine is a new design which is introduced from foreign countries basic technology. This machine combines washing filling and capping functions in one set. It is very convenient to change bottle size by using bottleneck clamping and bottle suspending technology. The advanced programmable PLC is equipped to control the main machine. The main electric components are all imported from the advanced countries. The parts which will touch water are made of SUS304 stainless steel.
The drinking water filling machine has the high degree of automation, beautiful shape, convenient operation and high productivity. All these advantages can help you save time and labor cost. It is an ideal machine to produce mineral water or pure water.
Features:
1. Integrate Bottling Rinsing, Filling and Capping into one.
2. Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.
3. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material
4. Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.
5. The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the
tubular frame.
6. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
7. Bottles are rinsed internally and externally, No bottle, No Rinsing.
8. Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.
9. Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.
10. PLC control and friendly touch screen HMI interface.
11. Adjustable speed by inverter.
12.Fast and easy changeover to various bottle sizes.
13. Unique design bottle neck suspend system makes bottle move smoothly.
14. Easy to operate,clean and maintain.
Parameter:
| Model | CGFB12-12-12-4 | CGFB18-18-18-6 | CGFB24-24-24-8 | CGFB32-32-32-8 | CGFB40-40-40-10 | CGFB50-50-50-12 | | Capacity(500ml) | 4000b/h | 6000b/h | 10000b/h | 14000b/h | 18000b/h | 24000b/h | | Bottle Shape | roud or square | | PET Bottle(mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | | Cap: | PE srew cap | | Filling Precision: | ≤±5mm | | Filling Pressure:(Mpa) | 0.15-0.35 | | Rinsing Pressure:(Mpa) | 0.2-0.25 | | Total power(kw) | 3.58 | 4.68 | 6.58 | 9.68 | 9.68 | 10.8 | |
Machine in our factory:
Our Advantage
| Design Ability | All the machines designed by CAD |
| Manufacturing Ability | Mechanical parts: high quality stainless steel, processed by CNC |
| Reliability | Electrical parts from world famous suppliers |
| Professional | Focus on beverage and cosmetics packing machines Exported to over 20 countries with good reputation 6 years Alibaba Golden supplier without complaint |
| Good Service: | Service include complete production line design, manufacturing, on-site installation & aftersales maintenance. |
| Profession on Export: | Authorized export licence. |
Pls contact me and let's talk more details, thanks in advance!
