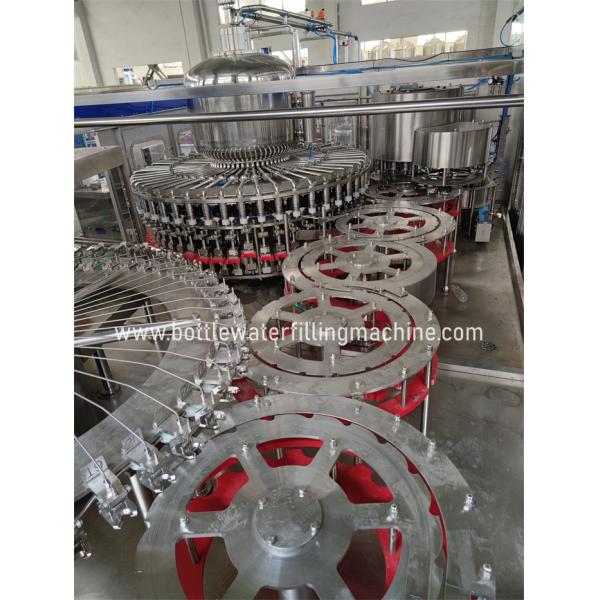

Water Bottle Filling Machine, Stainless Steel Liquid Beverage Production Line
We can provide complete line plants, from A to Z, the available capacity is from 1000 to 30000BPH,
Character:
1. This machine is washing filling capping 3 in 1 machine, can fill water, juice, flavor drink
and other still beverage;
2. The machine can work on bottles of different size, from 100-2000ml, only by chaning some spare parts;
3. filling heads 50 pieces, capacity can reach 24000BPH (bottles per hour);
4. The machine is controlled by Inverter, PLC and HMI, easy to operate.
5. All parts connect liquid are made of stainless steel SUS304.
Washing Part of Water Filling Machine
1.Stainless steel 304/316L washing heads. 2.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
3.Washing pump is made of stainless steel.
4. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water
thoroughly and save flush bottle.
Filling part of water filling machine
1.Filling method for gravity filling. 2.Filling valve manufactured SUS 304/316L. 3.High precision, high speed liquid filling. 4.Filling move by the rack drive system through gear transmission. 5.Hydraulic cylinder controlled by a float liquid level.
Capping Part of Water Filling Machine
1.Automatic check,no bottle no capping. 2.Capping heads in stainless steel 304/316L. 3.Capping heads stop working when lack of bottle. 4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle. 5.High efficiency centrifugal principle.
| Machine Size | 6000×3000×2350MM |
| Production Capacity | 24000 bottles per hour |
| Bottle Size | 100ml~2000ml |
| Weight | 7000KG |
| Bottle Material | PET Plastic |
| Machine Material | Stainless Steel 304/316L |
| Way Of Filling | Gravity Filling |
| Pressure | 0.7Mpa |
| Air Comsumption | 0.8m³/min |
if you are interested please contact freely...
