High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

Zhangjiagang Jiayuan Machinery Co.,Ltd.
Contact Now

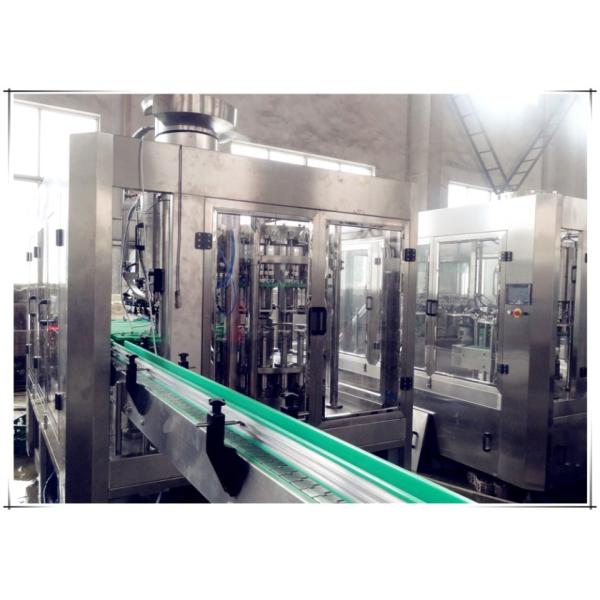

High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

Brand Name : jiayuan

Model Number : DGCF

Certification : CE,SGS

Place of Origin : CHINA,MAINLAND

MOQ : 1set

Price : USD 1500-85000 / set

Payment Terms : T/T

Supply Ability : 15 sets per month

Delivery Time : 30work days

Packaging Details : wooden case

material : stainless steel 304

color : silvery white

feature : high speed

filling volume : adjustable

filling material : flow liquid

control : touch screen

packing : wooden cases

service : engineer oversea

Contact Now


electric driven type carbonation device/carbonation equipment with engineer guided


Products Introduction

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.


Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle.


Characteristics

  • The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles.
  • Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.
  • The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation, etc.It is equiped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production.



High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

Technical Data

Model
DCGF32-32-8
DCGF40-40-40
DCGF48-48-12
DCGF60-60-15
Heads of washing, filling, sealing
32-32-8
40-40-10
48-48-12
60-60-15
Production capacity(bottle/hour)
12000-15000
16000-18000
20000-24000
24000-28000
Suitable bottle height(mm)
H=170-320,D=50-100(330-1500ml)
Spraying pressure
0.25-0.3MPa
Total Power(kw)
5.5
7.5
11
15
Overall dimension(L×W×H)(mm)
3800×2800*2650
4000×3300*3400
4850×3650
*3300

6500×5400
*3500
Weight(kg)
6800
8500
1000


High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles

Washing part of bottle washing filling capping machine

a) Rotary pan is made of stainless steel 304.

b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

Filling part of bottle washing filling capping machine

a) Rotary pan is made of stainless steel 304

b) The way of filling is gravitation filling.

c) The filling valve is adopted best stainless steel 304

d) The structure of filling valve is reasonable, the amount is correct

e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

Capping part of bottle washing filling capping machine

Capping machine is one of the highest precision machines, which greatly affects the reliability of device and the defective rate of product. The characteristic is as follows:

a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.

High Speed Carbonated Drink Filling Machine Rinsing / Filling / Capping For PET Bottles
